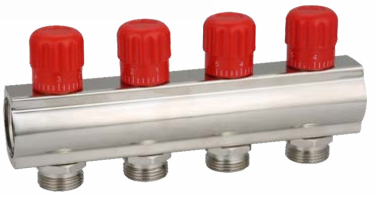

4 Port Manifold 1" - 3/4" Red Valves

A 4 Port Distribution Manifold 1" - 3/4" with Red Valves is a plumbing component used to distribute water or heating fluid from a central pipe to multiple outlets in a system, such as underfloor heating (UFH) systems, radiator circuits, or even in water supply applications. Heres a breakdown of the key features and specifications:

Key Features:

1. 4-Port Configuration: This manifold has four outlets, allowing for the distribution of fluid to up to four different circuits. Each port can be used to supply water or heating fluid to individual rooms, zones, or sections of an underfloor heating system or other installations.

2. Inlet and Outlet Sizes:

   • Inlet: The main inlet is typically 1 inch (1"), which is the standard size for the main supply pipe.
   • Outlets: The four outlet ports are 3/4 inch (3/4"), which is a smaller size commonly used for distributing the fluid to individual circuits or zones. This configuration allows for a more controlled flow of water to each circuit.

3. Blue Valves: The blue valves are usually flow control valves that allow you to regulate or shut off the flow to each individual port. The blue colour commonly indicates cold-water circuits, but in the context of heating systems, it could simply refer to the valve design or branding. The valves enable you to balance the flow or isolate specific zones without affecting the rest of the system.

4. Material: The manifold is typically made from durable materials such as brass, stainless steel, or a high-quality plastic. These materials ensure resistance to corrosion and high temperatures, making them suitable for both hot and cold water systems.

5. Mounting: The manifold is usually mounted to a wall or placed in a manifold cupboard, with connections for each port leading to the relevant zones or circuits in the system.

6. Use in Underfloor Heating (UFH): In UFH systems, a 4-port manifold is commonly used to distribute the heated water to four different loops or circuits laid out under the floor. The ability to control the flow to each loop is essential for balancing the system and ensuring an even temperature distribution.

Applications:

• Underfloor Heating Systems: Distributes water or heating fluid to multiple zones or circuits under the floor.
• Radiator Systems: Can also be used in central heating systems to direct water to different radiators or heating zones.
• Domestic or Commercial Heating: Suitable for residential and light commercial heating applications where multiple heating circuits are needed.
