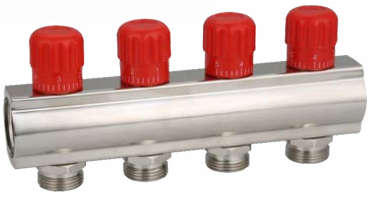

4 Port Manifold 3/4" - 1/2" Red Valves

A 4 Port Distribution Manifold 3/4" - 1/2" with Red Valves is a specialized plumbing component used to distribute water or heating fluid from a central supply pipe to multiple outlets. This type of manifold is commonly used in underfloor heating (UFH) systems, radiator circuits, or water distribution systems. Below is a breakdown of its key features and applications:

Key Features:

1. 4-Port Configuration:
   The manifold has four outlet ports, allowing fluid to be distributed to up to four separate circuits or zones. This makes it ideal for systems that require individual control of multiple branches or rooms, such as in underfloor heating or multi-zone heating installations.

2. Inlet and Outlet Sizes:

   • Inlet: The main inlet size is 3/4 inch (3/4"), which is a common size for the supply pipe in residential and commercial plumbing and heating systems.
   • Outlets: The four outlet ports are 1/2 inch (1/2"), a smaller size typically used for distributing fluid to individual circuits or zones. The smaller size helps to control the flow and pressure to each individual circuit more effectively.

3. Blue Valves:
   The manifold includes blue flow control valves that allow you to regulate or shut off the flow to each of the four outlets. The blue colour typically signifies cold water or a cooling system in some cases, but more often, the colour is used for its design or branding purpose. These valves help balance the system, allowing you to adjust the flow to each zone or circuit as needed.

4. Material:
   Manifolds are typically made from durable materials like brass, stainless steel, or high-quality plastic. These materials provide strength, resistance to corrosion, and long-lasting performance, even under high temperatures and pressures.

5. Mounting and Installation:
   The manifold is usually mounted on a wall or placed in a manifold cupboard for easy access. The inlet connects to the central supply pipe, while the outlets connect to the individual circuits or zones. Each port can be controlled independently, ensuring the system remains balanced.

Applications:

• Underfloor Heating (UFH):
  A 4-port manifold is ideal for distributing heated water to four different circuits or zones in an underfloor heating system. It allows for easy balancing of the system and ensures that each zone receives the correct amount of flow for even heat distribution.

• Central Heating Systems:
  This manifold can also be used in conventional radiator systems to direct water to multiple radiators or heating zones in the home or building.

• Water Supply:
  In some cases, these manifolds are used in multi-zone water distribution systems to distribute water to different areas, such as bathrooms, kitchens, or irrigation systems.

Benefits:

• Flow Regulation: The blue valves allow for precise flow control to each individual circuit, which is especially useful for balancing the system in heating applications.
• Space Efficiency: The compact design of the manifold makes it easy to install in tight spaces like utility rooms or underfloor heating manifolds.
• Enhanced Efficiency: By distributing fluid effectively to each zone, the manifold ensures that the system operates more efficiently, reducing energy waste and providing better overall performance.
