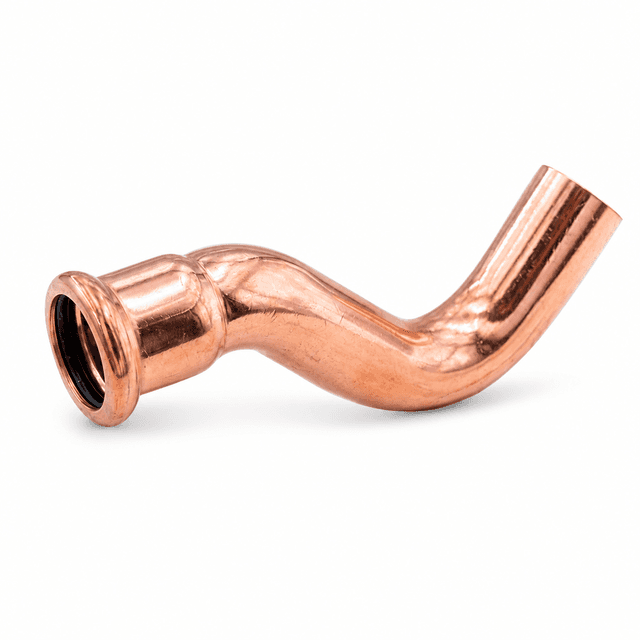

Partial Crossover 15-15mm

The EXF9-PC15x15 Partial Crossover 15-15mm Press Fitting is a specialized plumbing component designed to create a secure, reliable connection between 15mm pipes using press-fit technology. This fitting features a partial crossover design, meaning it allows two 15mm pipes to be connected in a straight line, forming a reliable and leak-proof joint. It is particularly useful in situations where two pipes need to connect without needing a complex joint or elbow fitting.

Key Features and Description:

1. Material:

   • The EXF9-PC15x15 fitting is typically made from high-quality, corrosion-resistant materials such as brass or stainless steel. These materials ensure the fitting is durable, resistant to rust and corrosion, and able to withstand high temperatures and pressures commonly found in plumbing systems.
   • Brass is a commonly used material for plumbing fittings due to its ability to resist corrosion, particularly in environments exposed to water and heating systems.

2. Design and Configuration:

   • The 15x15mm indicates that both ends of the fitting are designed to connect to 15mm diameter pipes, making it ideal for domestic plumbing systems or heating installations that use this common pipe size.
   • The Partial Crossover design means that the fitting allows for the connection of two 15mm pipes in a straight line without introducing any angular direction change. This design makes it simpler to join pipes in linear arrangements, offering flexibility for the installer.
   • This fitting does not require soldering, threading, or additional sealing materials, as it uses press-fit technology to form a secure and leak-proof joint.

3. Press-Fit Technology:

   • The press-fit system is the core technology behind this fitting. Once the EXF9-PC15x15 is placed over the pipes, a press tool is used to compress the fitting onto the pipe. This creates a permanent, leak-proof seal that is strong and resistant to high pressures.
   • The press-fit method is advantageous because it is faster and safer than traditional methods like soldering or threading. It also eliminates the need for additional sealing compounds, such as PTFE tape or flux, and avoids the risk of fire associated with soldering.
   • The permanent seal created by the press-fit technology ensures that the connection remains intact over time, even in high-pressure and high-temperature systems.

4. Applications:

   • The EXF9-PC15x15 Partial Crossover fitting is ideal for use in domestic plumbing systems, central heating systems, and underfloor heating (UFH) systems where 15mm pipes need to be connected in a straight line.
   • Common applications include:
     • Water Supply: Connecting two sections of 15mm pipes for water distribution systems.
     • Radiator Connections: Joining 15mm pipes to radiator valves or manifolds in central heating systems.
     • Underfloor Heating (UFH): Connecting two parallel runs of 15mm piping used in underfloor heating circuits.
     • Repairs and Modifications: Ideal for joining existing 15mm pipes during system upgrades or repairs without needing complex fittings or alterations.

5. Advantages:

   • Quick and Easy Installation: The press-fit technology allows for faster installation compared to traditional methods, as no soldering or threading is required. This reduces the overall time spent on plumbing installations or repairs.
   • Leak-Proof and Permanent Seal: The press-fit connection ensures that the fitting forms a tight, leak-proof seal once installed, offering a secure connection even under high-pressure conditions.
   • No Heat or Soldering Required: Since the press-fit system eliminates the need for open flames or heating tools, it is safer and cleaner than traditional plumbing methods, reducing the risk of accidents.
   • Corrosion Resistance: The materials used in the fitting, typically brass or stainless steel, are resistant to corrosion, ensuring that the connection will remain reliable over time in a variety of water conditions.
   • Reduced Risk of Leaks: The press-fit system creates a secure, permanent seal that minimizes the risk of leaks, which is essential in high-pressure or high-temperature systems.

6. Compatibility:

   • The EXF9-PC15x15 fitting is specifically designed to work with 15mm copper pipes, PEX pipes, or multilayer pipes, making it versatile and compatible with various plumbing materials.
   • The press-fit system is compatible with standard press tools, which are available for use with different pipe types (copper, PEX, multilayer), ensuring a reliable and consistent installation.
   • The fitting is designed for 15mm pipe systems, which is a common size used in both residential and light commercial plumbing installations.
