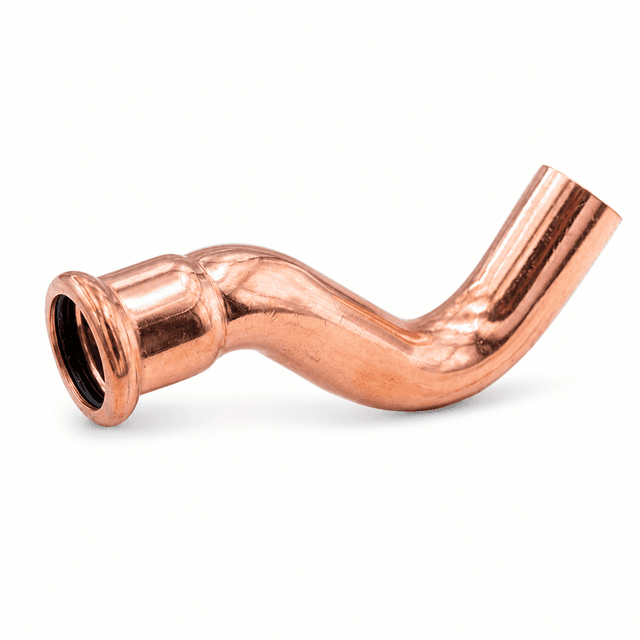

Partial Crossover 22-22mm

The EXF9 Partial Crossover 22-22mm Press Fitting is a plumbing fitting designed to connect 22mm pipes using press-fit technology. This fitting features a partial crossover design, allowing two 22mm pipes to be joined in a straight line, providing a reliable, leak-proof connection without the need for complex joints or fittings.

Key Features and Description:

1. Material:

   • The EXF9 Partial Crossover 22-22mm fitting is typically made from high-quality brass or stainless steel, materials known for their durability and corrosion resistance.
   • Brass is commonly used due to its excellent resistance to rust and wear, especially in plumbing and heating systems exposed to water and high temperatures.

2. Design and Configuration:

   • The 22-22mm design refers to the fitting having two 22mm connections, one on each end, specifically designed to connect to 22mm diameter pipes. This makes the fitting ideal for domestic, commercial, or industrial systems using 22mm pipes.
   • The Partial Crossover aspect means that the fitting connects two pipes in a straight line, providing a simple and straightforward way to join pipes in parallel without introducing any angular change.
   • This fitting is well-suited for situations where two 22mm pipes need to connect without requiring elbows, tees, or other complex fittings.

3. Press-Fit Technology:

   • The EXF9 Partial Crossover 22-22mm fitting uses press-fit technology, which ensures a quick, secure, and leak-proof connection. This technology eliminates the need for traditional methods like soldering, welding, or threading.
   • The fitting is placed onto the ends of the 22mm pipes, and a press tool is used to compress the fitting onto the pipes, creating a tight, permanent seal that will not leak under normal operating conditions.
   • The press-fit method is faster and safer than traditional methods, as it does not involve heat, flux, or solder, reducing installation time and avoiding potential fire hazards.

4. Applications:

   • The EXF9 Partial Crossover 22-22mm fitting is ideal for a variety of plumbing and heating applications, including:
     • Water Supply Systems: Connecting two sections of 22mm pipes in a straight line for water distribution in domestic or commercial settings.
     • Central Heating Systems: Joining pipes in a straight configuration, such as for the connection between radiator valves, manifolds, or other central heating components.
     • Underfloor Heating (UFH): Connecting parallel runs of 22mm pipe in underfloor heating circuits.
     • Repairs or Modifications: Ideal for extending or repairing sections of 22mm piping without requiring complex configurations or excessive fittings.

5. Advantages:

   • Quick and Efficient Installation: The use of press-fit technology allows for a significantly faster installation process compared to traditional methods, as there is no need for soldering or heating.
   • Leak-Proof and Permanent Seal: The press-fit system creates a permanent, leak-proof connection that will not fail under pressure, ensuring the long-term reliability of the system.
   • No Heat or Soldering Required: Eliminates the risks associated with open flames, heat damage, or fire hazards, as no soldering is needed to make the connection.
   • Corrosion Resistance: The fittings construction from brass or stainless steel ensures it is resistant to corrosion, making it suitable for use in water supply systems or heating systems where exposure to moisture or chemicals is common.
   • Cleaner and Safer Installation: The installation process is safer and cleaner compared to traditional methods, as there is no need for solder flux, adhesives, or other sealing materials.

6. Compatibility:

   • The EXF9 Partial Crossover 22-22mm fitting is compatible with a wide range of 22mm piping systems, including copper, PEX, and multilayer pipes. This flexibility allows the fitting to be used in various types of plumbing and heating installations.
   • It is compatible with press-fit tools designed for 22mm piping, ensuring proper compression and a secure, leak-proof connection.
   • The fitting is a straight-through connection that allows for an easy, direct link between two parallel pipes, making it ideal for applications where no angular connection is needed.
