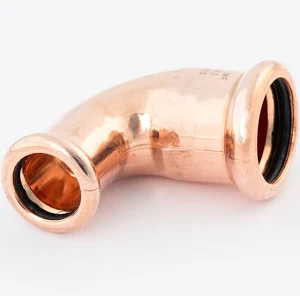

Unequal Elbow 22-15mm

The EXF9-L22x15 Unequal Elbow 22-15mm is a press-fit fitting designed to connect 22mm pipes to 15mm pipes in plumbing systems. This unequal elbow fitting features a 90-degree angle and is used when there's a need to change the direction of the pipework while reducing the pipe size from 22mm to 15mm.

Key Features and Description:

1. Material:

   • The EXF9-L22x15 Unequal Elbow is typically made from high-quality copper, brass or stainless steel.

2. Design and Configuration:

   • 22mm to 15mm Size Reduction: This unequal elbow allows for a transition between 22mm and 15mm pipes, with the larger size (22mm) on one end and the smaller size (15mm) on the other end.
   • 90-Degree Angle: The fitting is designed to change the direction of the pipework by 90 degrees, ideal for plumbing installations where the pipe needs to navigate around obstacles or change direction in tight spaces.
   • Press-Fit Technology: The EXF9-L22x15 uses press-fit technology, allowing for easy and fast installation without the need for soldering, threading, or heat. This ensures a secure, leak-proof seal with minimal effort.

3. Press-Fit Technology:

   • Press-fit fittings use a press tool to install the fitting onto the pipe, creating a permanent, reliable, and leak-proof seal. This eliminates the need for soldering or threading, making the installation process quicker, cleaner, and safer.
   • The fitting is compressed onto the pipe using the press tool, ensuring that the joint remains strong and leak-free under pressure and temperature fluctuations.

4. Applications:

   • The EXF9-L22x15 Unequal Elbow is commonly used in plumbing systems where a reduction in pipe size is required while maintaining a directional change, such as:
     • Domestic Plumbing: Connecting 22mm pipes to 15mm pipes in water supply lines, taps, or radiators.
     • Underfloor Heating (UFH): Used in systems where 22mm pipes need to connect to 15mm distribution lines or radiators.
     • Central Heating Systems: Transitioning between larger 22mm and smaller 15mm pipes in heating circuits, radiators, or manifolds.
     • Commercial Plumbing: Used in larger installations where a size reduction from 22mm to 15mm is necessary for certain fixtures or plumbing components.

5. Advantages:

   • Quick and Easy Installation: The press-fit technology makes the installation process faster and safer than traditional methods, as there is no need for open flames, soldering, or sealing compounds like PTFE tape.
   • Leak-Proof Seal: Once installed, the fitting provides a permanent and leak-proof seal, ensuring reliable connections over the long term.
   • Durability and Corrosion Resistance: Made from brass or stainless steel, the fitting is durable and resistant to corrosion, making it ideal for use in water and heating systems that are subject to high pressures and varying temperatures.
   • Cleaner and Safer Installation: Since no heat is required, there is no risk of burns, fire, or damage from soldering, and the process is cleaner, reducing mess and improving safety on the job site.

6. Compatibility:

   • The EXF9-L22x15 Unequal Elbow is compatible with a range of pipe materials, including copper, PEX, and multilayer pipes, making it versatile and suitable for various types of plumbing systems.
   • The 22mm end of the elbow connects to 22mm pipes, and the 15mm end is designed to work with 15mm pipes, ensuring a seamless connection in systems that require a reduction in pipe size.
