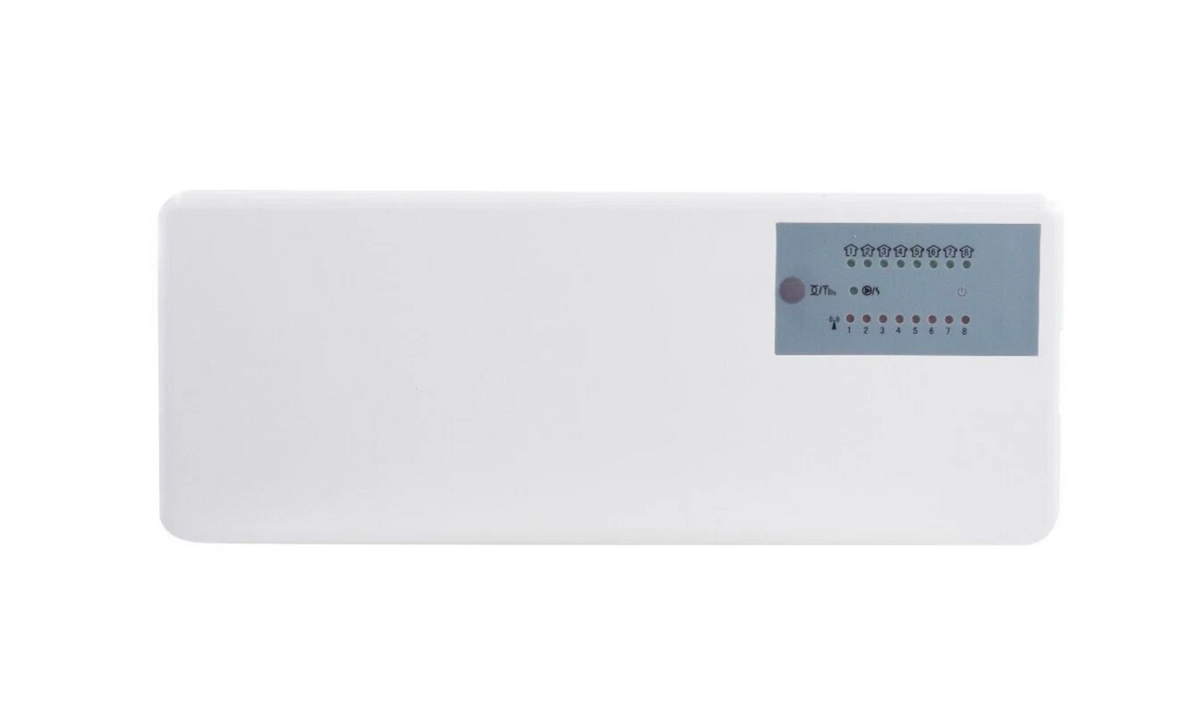

Wireless Wiring Centre (RF) - 8 Zone Underfloor Heating Control

Control up to eight heating zones without running a single thermostat cable. This RF wiring centre pairs with wireless thermostats over 868 MHz, so each room gets its own independent control while the only wiring you do is at the manifold.

That makes it the sensible answer on retrofit work, solid wall properties, listed buildings and finished floors, where chasing walls for thermostat cable means mess, time and making good afterwards. It works just as well on new build where you simply want fewer cables to pull.

Why installers pick it

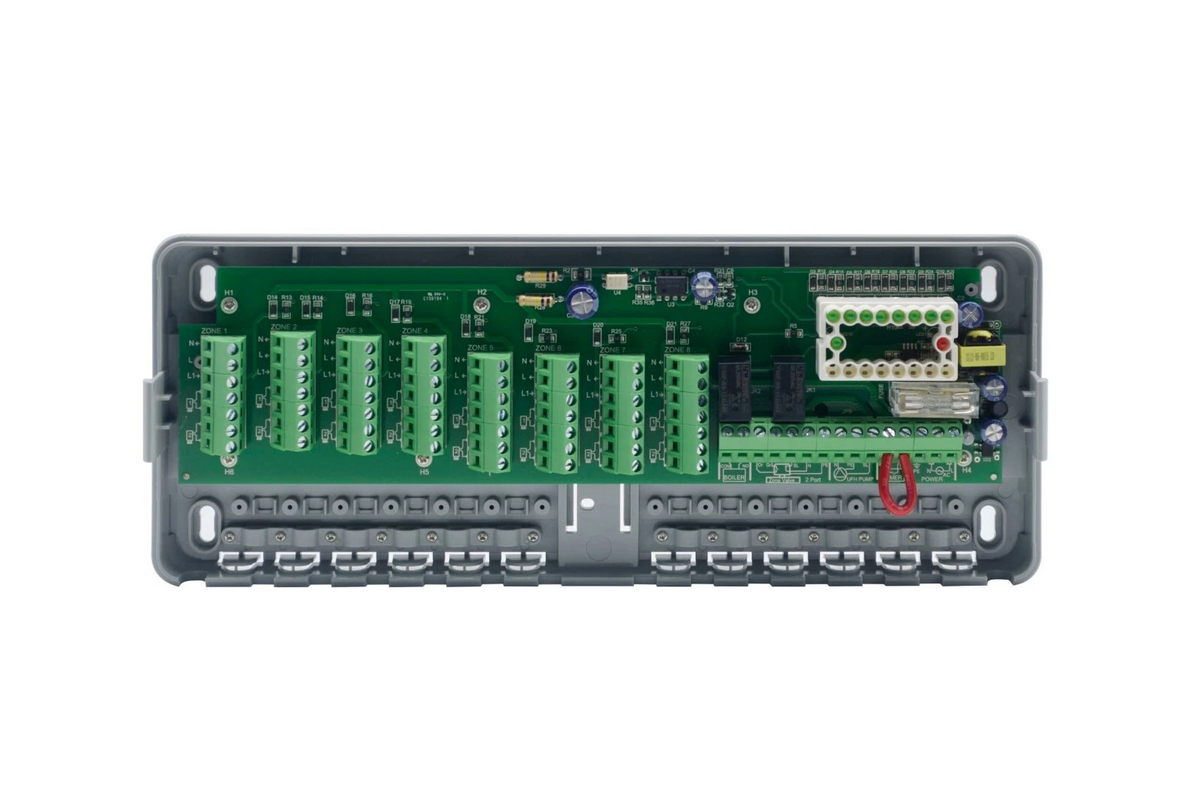

Everything the system needs is in one wall mounted unit with a clearly laid out terminal block. Pump and boiler relays are built in, so there's no separate switching to wire up, and the boiler output is volt free to suit whatever appliance you're working with. LED indicators across the front show power, heat demand and actuator status at a glance, which turns most fault finding into a ten second look rather than a meter and a head scratch.

Pairing thermostats is a simple process, and it mounts to a wall or onto DIN rail depending on how the rest of your control gear is arranged.

Specification

• Power supply: 100-240V AC, 50/60Hz
• Zones: 8 maximum, one thermostat per zone
• Actuator outputs: 8 x 230V AC, 2A max per output, 5A total
• Pump output: 230V AC, 4A max
• Boiler output: volt free relay contact, 4A max
• Wireless frequency: 868 MHz RF
• Mounting: wall or DIN rail
• Operating temperature: 0-50°C

Before you order

This unit switches 230V thermal actuators. It is not suitable for 24V actuators unless you add an interface relay, so check what's on your manifold first. You'll also need 868 MHz RF thermostats to pair with it, one per zone.

Typical uses

• Multi zone underfloor heating
• Radiator manifold control
• Mixed systems needing pump and boiler switching
